40403 - Atom Electric H10 Longboard Skateboard - 104Wh Lithium Battery - 700W Hub Motor

40403 - Atom Electric H10 Longboard Skateboard - 104Wh Lithium Battery - 700W Hub Motor

499.95

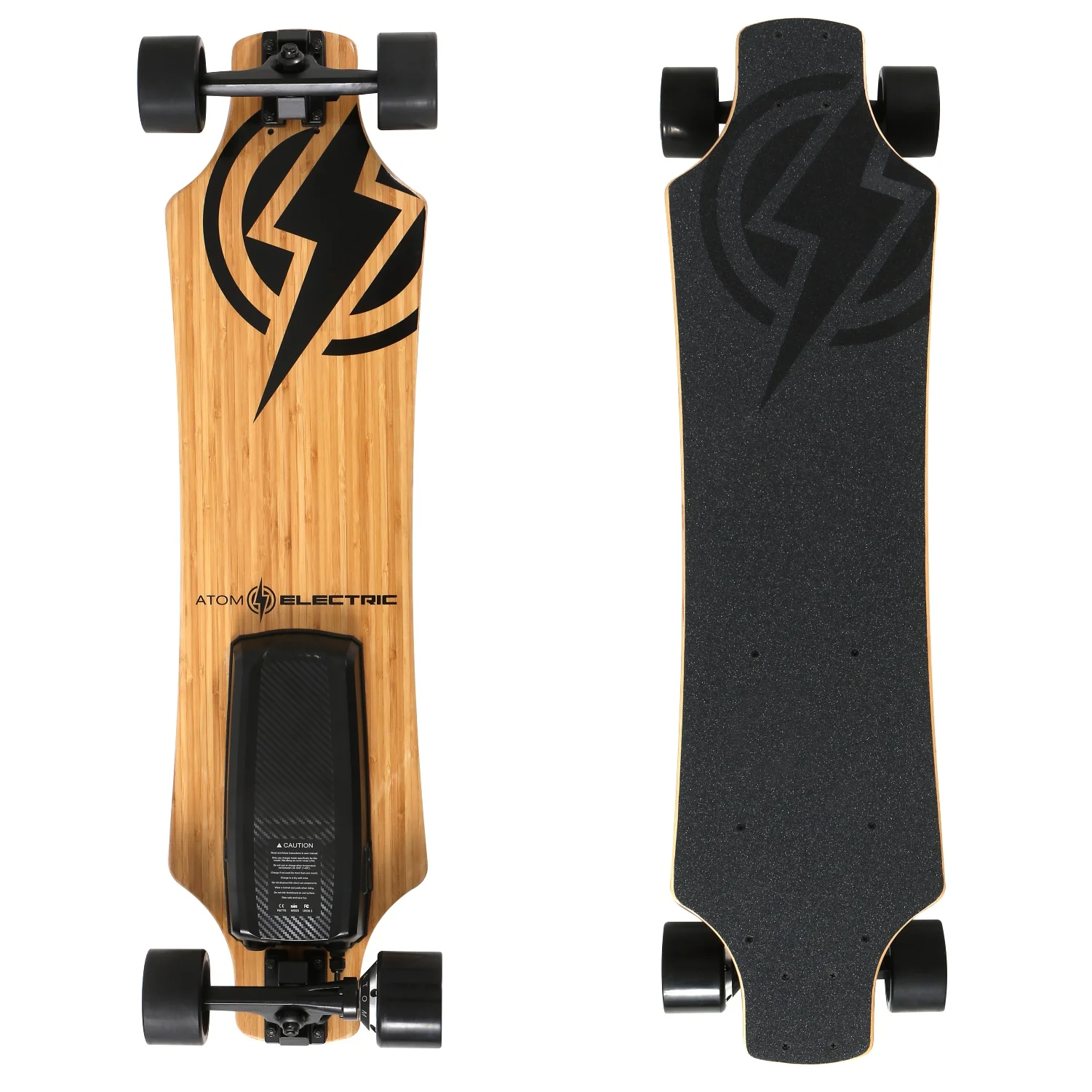

We knew we were onto a good thing with the Atom Electric H10 longboard when we just couldn't seem to wipe the smile off our face every time we returned from a test run.  Maybe it's the fact that so much power is packed into such a compact package thanks to high performance brushless DC hub motors and genuine Panasonic lithium-ion battery cells?  Or is it because the board itself just rides so nice with its 36" bamboo/maple hybrid deck, high precision reverse kingpin trucks, and super-high-rebound (SHR) 70mm wheels?  It could even be that the H10 literally puts complete speed control in the palm of your hand with its comfortable 2.4Ghz remote control and regenerative braking system, removing any stress that there might not be enough room on the road to throw down a slide when it's time to shed some speed.  Whatever it is, you'll find out for yourself when you embark on your electric journey with the Atom Electric H10 longboard under your feet.


  • LIGHT AND COMPACT HUB MOTORS - With the motor hidden inside the wheel, hub motors are the lightest and most compact option for electric skateboards making them the ideal solution to the last mile of your commute.

  • LOW MAINTENANCE - Without belts or gears to maintain hub motors deliver worry free performance year after year.

  • FAMILIAR LONGBOARD FEEL - We've engineered our H-series boards to feel exactly like a normal longboard, but with power!  Our battery box design keeps the board low to the ground for maximum stability and the maintains deck flex to make your journey as comfortable as possible. And thanks to the low-resistance hub motors H-series boards can be skated like a normal longboard if a little extra exercise is what the doctor ordered.

  • REGENERATIVE BRAKING - One feature that guarantees electric skateboards are the future of personal transportation is their ability to stop safely and reliably and thanks to Atom Electric's regenerative braking technology they recharge your battery while doing it.  Go the extra mile with Atom Electric.

  • SAFE, STRONG, AND RELIABLE BATTERIES - Atom Electric uses the best lithium cells available (Samsung, LG, and Panasonic) and tests 100% of batteries using peak charge and discharge rates before putting them in a board.  There is no way to stop off-brand companies from using cheap and dangerous lithium batteries in their constant push to offer the cheapest price online, but luckily customers are starting to understand you get what you pay for, especially when it comes to safety.  Good batteries are expensive, but your safety is worth it.

  • BATTERY LEVEL INDICATOR - Don't get caught in black out.  Check the boards built-in battery indicator to know when it's time to turn back.

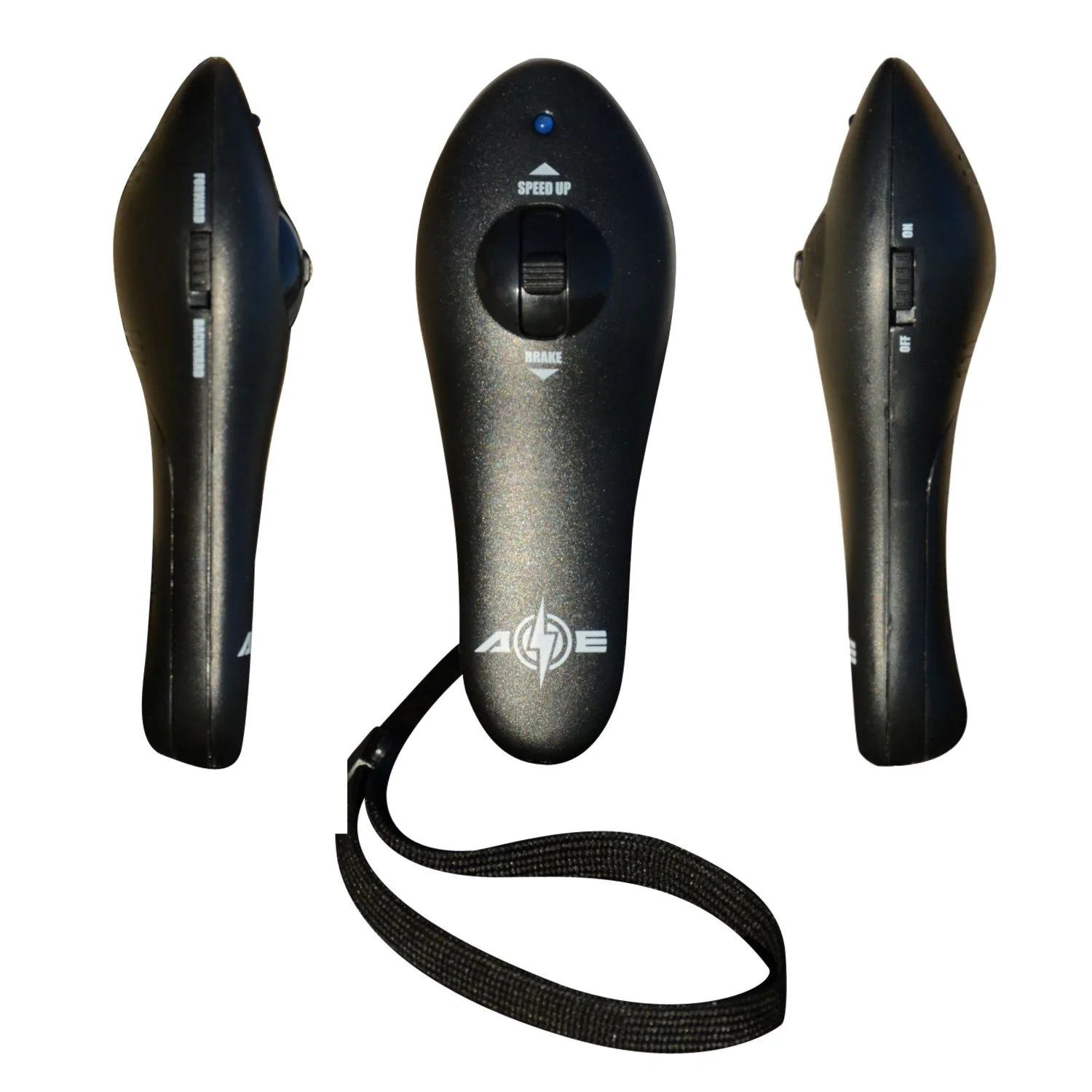

  • ERGONOMIC REMOTE CONTROL - Secure 2.4GHz wireless technology housed in a lightweight comfortable remote makes controlling your board feel completely natural.

  • TWO SPEED MODES - Slow mode tames the beast for first timers and granny drivers.  Fast mode unleashes it!

  • USB CHARGING PORT - Don't let a dead device ruin your day.  Use the board's integrated 5V USB charging port to power-up on the go.

  • Comes Fully Assembled

  • Part#: 40403


SPECIFICATIONS:

Range*: 9.3 miles / 15 km

Max Speed**: 16 mph / 26 kmh

Max Grade***: 10%

Max Rider Weight: 220 lb / 100 kg

Max Recommended Rider Weight: 200 lb / 91 kg

Board Weight: 12 lb / 5.5 kg

USB Accessory Charging Port?: Yes 5V / 1.5A

Battery Charge Time: 3 hours



Deck Material: Bamboo / Maple

Deck Length: 36 in / 91.5 cm

Deck Width: 9.4 in / 25.5 cm



Motor Type: Brushless Direct Current (BLDC)

Motor Max Power Rating: 700W

Motor Braking: Regenerative Braking

Motor Sensors: Hall Sensors

Belt Spec: N/A



Cell Type: Lithium-Ion (18650)

Cell Spec: Panasonic PF

Cell Voltage (Nominal): 3.6 V

Cell Current Capacity (Ah): 2.9 Ah

Cell Energy Capacity (Wh): 10.4 Wh



Battery Configuration: 10S X 1P (10 cells)

Battery Voltage (Nominal): 36V

Battery Current Capacity (Ah): 2.9Ah

Battery Energy Capacity (Wh): 104 Wh



Charger / Battery Voltage (Max): 42 V

Battery Charger Output (Amps): 1 A



Wheel Material: Super High Rebound PU

Wheel Dimensions: 83mm X 56mm

Wheel Hardness: 78A



Remote Battery Type: AAA

ESC Software: Pulse Width Modulation (PWM)



UN Dangerous Goods #: UN3171

UN Dangerous Goods Category: Battery Powered Vehicle

Dangerous Goods Class: Class 9 (Misc)

Certificates: UN 38.3, CE, RoHS



*Range is based on a 155lb (70kg) person riding conservatively (slow/eco mode) on relatively smooth and flat terrain with minimal wind.  Actual mileage varies depending on rider weight, riding surface, hills, wind, and most importantly riding habits. To achieve maximum mileage kick to start, accelerate slowly, coast when possible, brake lightly, and ride below max speed.  Going slower means going further. Use slow / eco mode to achieve longest possible range.** Max grade calculated based on 155 lb (70kg) rider riding on smooth surface with mild breeze at full charge.  Actual max grade depends on rider weight, riding surface, and battery level.

** Max speed is calculated when riding on smooth flat ground with no wind with board at full charge.  Max speed will decreases as your battery level decreases.  This is true for all electric boards.

*** Max grade calculated based on 155 lb (70kg) rider riding on smooth surface with mild breeze at full charge.  Actual max grade depends on rider weight, riding surface, and battery level.
